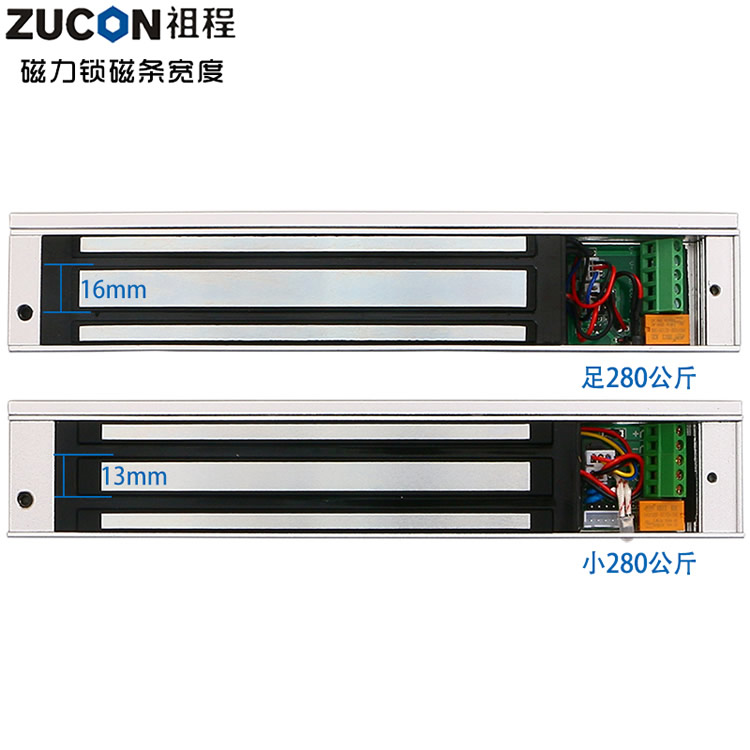

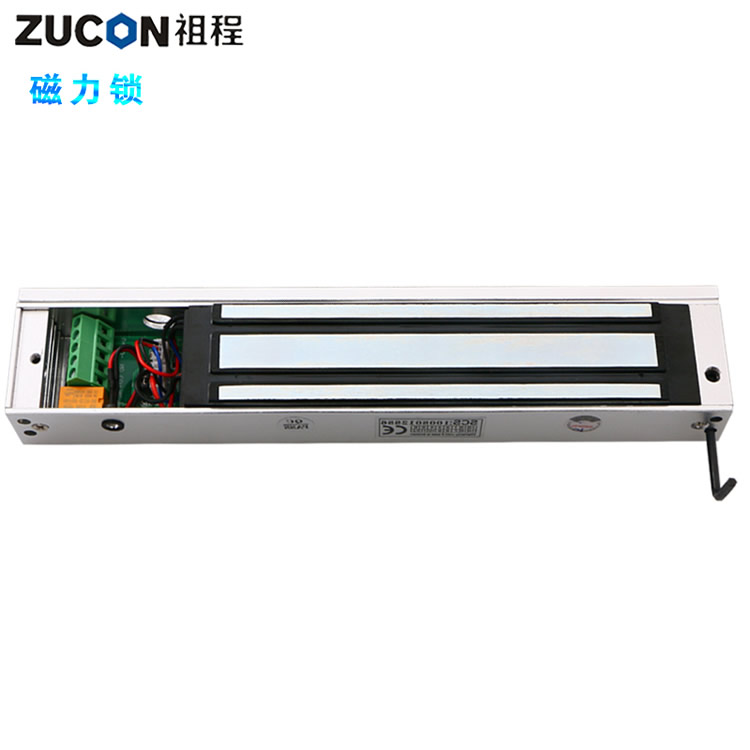

Product Parameters: Product Name | Magnetic lock(small 280kg/ enough 280kg ) | Product Model | 105D(common 2 lines),105DS(5 lines signal feedback) | Applicable Door Type | Wooden door,iron door framed glass door | Input Voltage | DC12V | Work Current | 450mA | Proper Temperature | -20~+55℃ | Proper Humidity | 0~95%(relative humidity) | Lock Size | 250*47*25mm(small 280kg) | Suction Board Size | 180*38*10mm | Linear Pull | small 280kg/ enough 280kg linear pull | Lock Size | 250*48*25mm(enough 280kg) | Suction Board Size | 180*38*14mm | Surface Temperature | Within +20℃ lower the environment temperature | Profession Device | Built-in breakthrough wave absorber, anti-residual design | Shell Process | Anodized hardening electroplating treatment | Lock Body Process | Environmentally protection zinc plating treatment | Suction Board Process | Environmentally protection zinc plating treatment | Product Weight | 2.0kg |

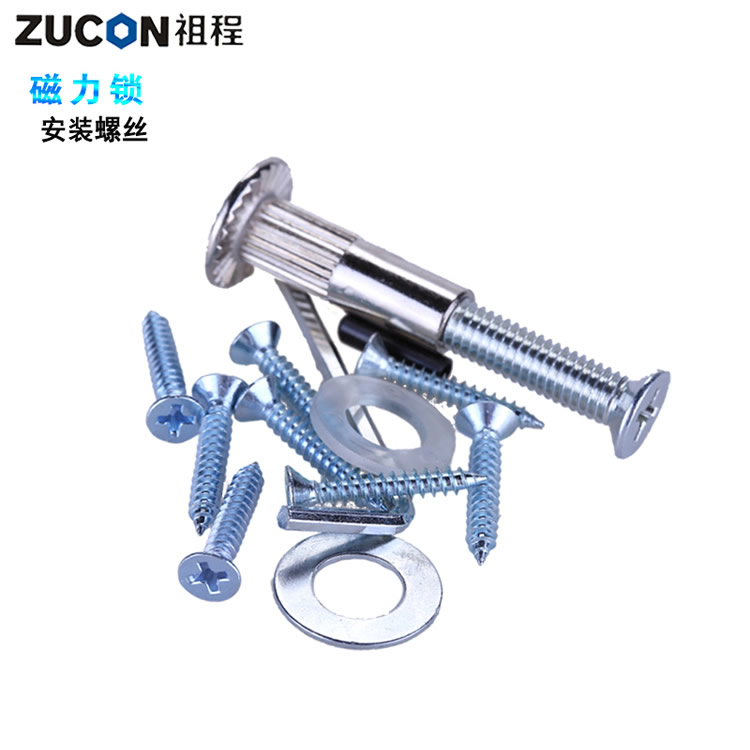

Product Features: This access control magnetic lock has an actual 230\280KG linear pull 230KG standard\230KG signal\ 280KG standard\280KG signal(optional) This access control magnetic lock is made of aluminum alloy Access control magnetic lock with precision originals Normally open normally closed signal,can be used with alarm system The access lock magnetic lock uses a hexagonal screw, equipped with a special screw wrench, security anti-theft, and the bottom is engraved with shading
|
