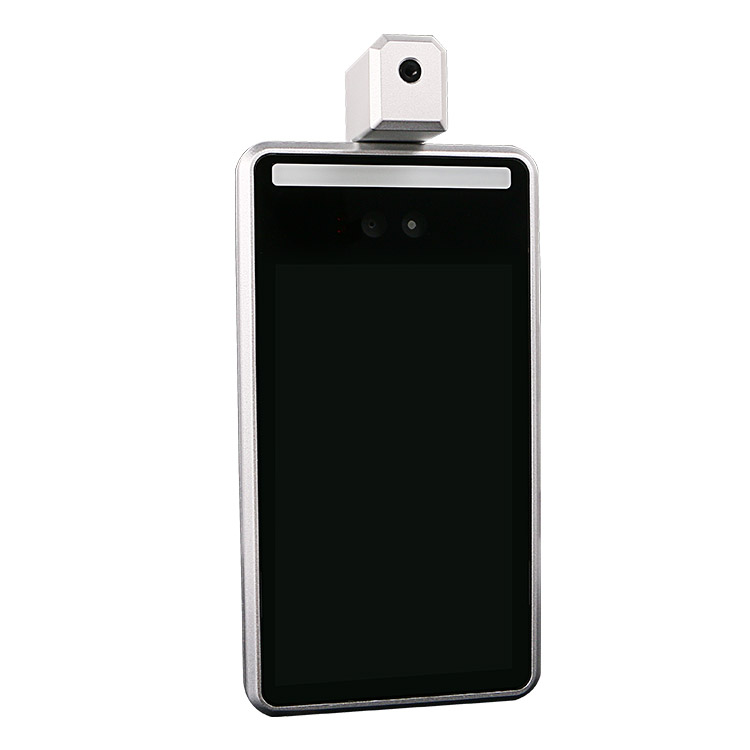

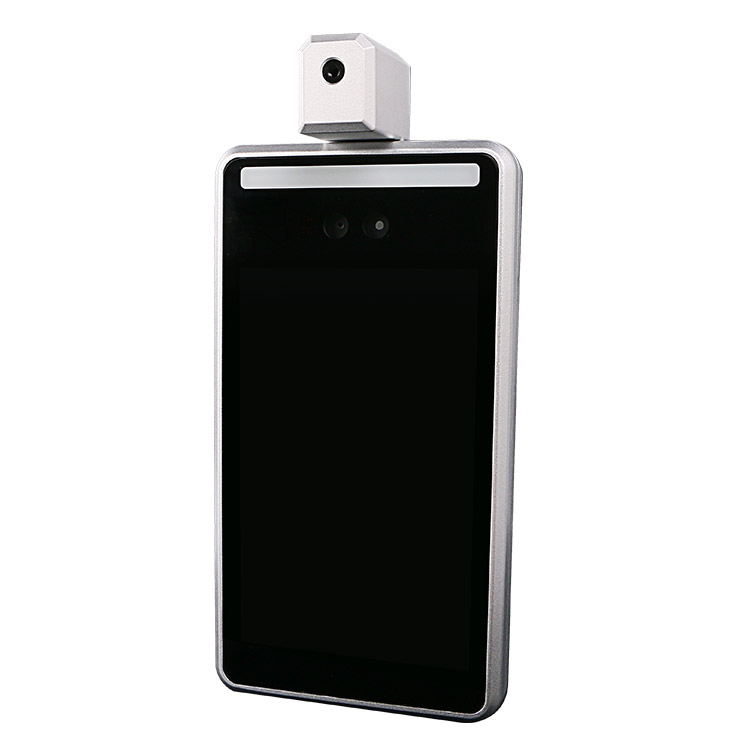

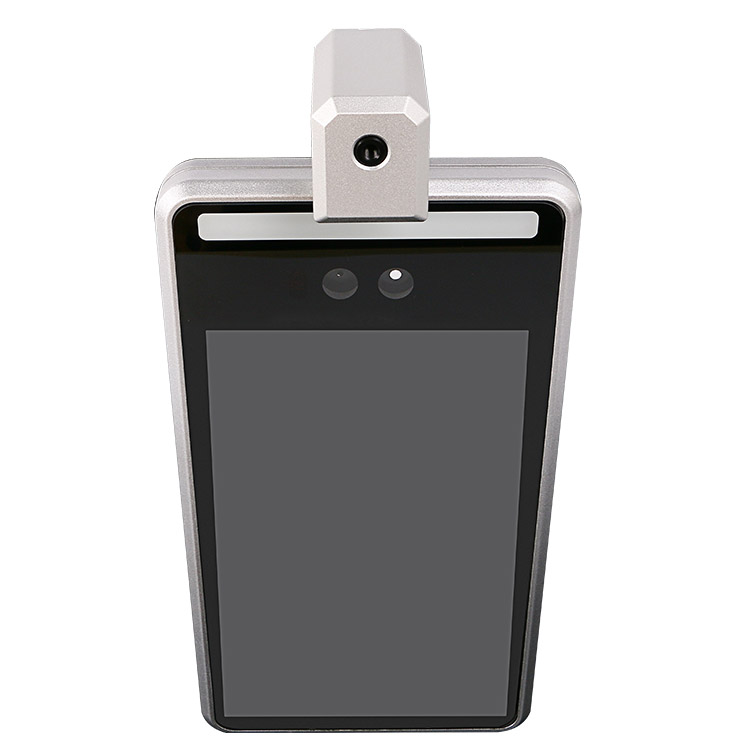

| - Access control - MH8-TS |
|
|
|
Product Details： |
| :0.0000pt;">Performance | | Recognition height | 1.2~2.2 meters, angle adjustable | Recognition distance | 0.3~1.5 meters, depends on lens | Recognition time | Less than 0.5 seconds | Storage capacity | 160,000 capture records | Face capacity | 24000pcs | Screen brightness | ≥400 cd/m2 | Interface | | Switching output | 1 way switch output, other GPIO port can be customized | Network interface | 1 RJ45 10M / 100M adaptive Ethernet port, Gigabit Ethernet port can be customized | Wiegand interface | 1ch Wiegand interface input/output | Communication interface | | , de:restrictions;punctuation-wrap:simple;"> 1ch RS485 interface USB interface 1ch USB interface Camera Camera Dual cameras, visible and near infrared, support live detection Effective pixels 2MP, 1920*1080 Min Illumination Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR) SNR ≥50db(AGC OFF) WDR 120db, ISP algorithm face partial exposure Function Web side configuration support remote upgrade support LAN/ WAN support Regular Working humidity 0～90% relative humidity, no condensation Salt spray level Rp6 or above Antistatic contact ±6KV, air ±8KV Power DC12V/2A , 20W(MAX) Column aperture 36mm Equipment size 252(L) * 136 (W) * 26 (T) mm Screen size 8 inches IPS HD screen Weight 1.7 kg , Model | MH8-TS | Hardware | | Processor | Dual Core Processor+ 1G memory + 16G flash | Operating system | Linux Operating system | Storage | Support TF card storage | Viewing angle | Vertical viewing angle: 30°; Horizontal viewing angle: 30° | Sensor | 1/2.8" Progressive Scan CMOS(IMX307) | Lens | 6mm | Speaker | voice playback content can be customized | Temperature measurement performance | Please find the notes on last page | Measurement range | 16℃ - 40℃ (Indoor without wind) | Temperature measurement lens | European original lens | Sensors type | Germany imported sensors | Fieldangle(FOV) | 33° | Array resolution | 32*32 | Measurement accuracy | ±0.3℃ | Temperature resolution | 0.1℃ | Temperature measurement distance | ≤80cm | Measurement response time | 300ms |
|
|
